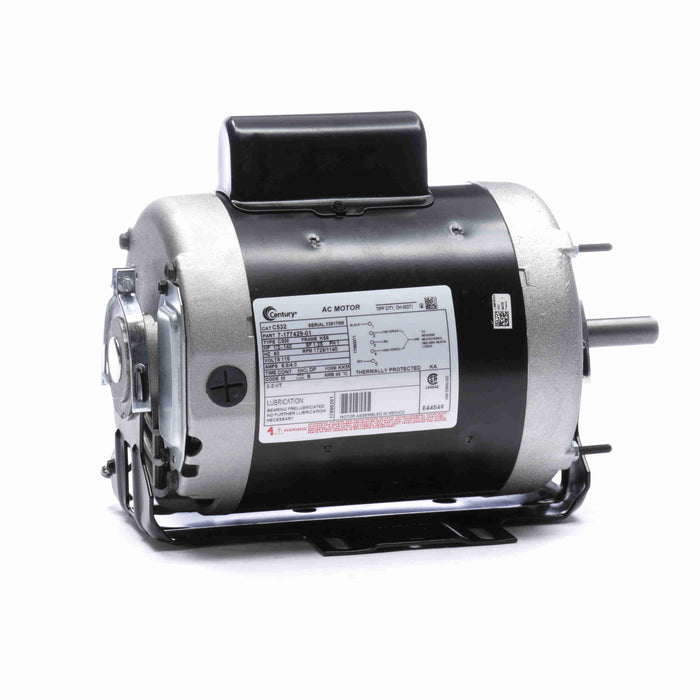

Century C532 HVAC Belt Drive Fan Motor - C532

$586.87

Catalog#: C532
Manufacturer: Century

  • Product Type: Capacitor Start
  • HP: 1/7, 1/2
  • RPM: 1140/1725
  • Volts: 115
  • Amps: 6.8/4
  • Hz: 60
  • Phase: 1
  • Frame: 56
  • Enclosure Type: ODP (Open Dripproof)
  • Mounting: Cradle/Stud
  • Motor Diameter: 6-1/2"
  • Shaft Diameter: 5/8" Keyed
  • Shaft Length: 1-7/8"
  • Rotation: Reversible
  • Number of Speeds: 2
  • Service Factor (SF): 1.25
  • Bearings: Ball
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • C532 is listed in Century's cross reference as a substitute for the following: Dayton 2K261, A.O. Smith 177429, Century 177429, Dayton 4UB50
  • Ship Weight: 31 lbs.
