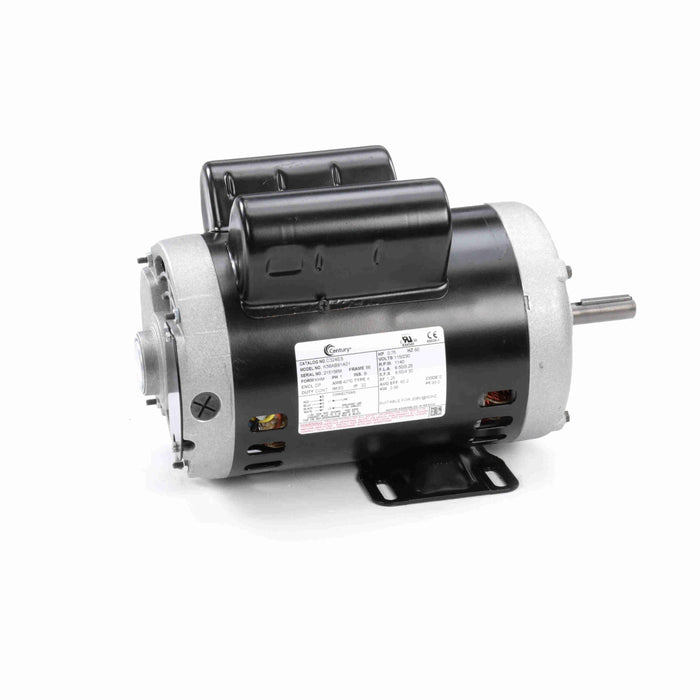

Century C324ES General Purpose Single Phase Motor - C324ES

$687.75

Catalog#: C324ES
Manufacturer: Century

  • Product Type: Capacitor Start, Capacitor Run
  • HP: 3/4
  • RPM: 1140
  • Volts: 115/230
  • Amps: 6.5/3.25
  • Hz: 60
  • Phase: 1
  • Frame: 56
  • Enclosure Type: ODP (Open Dripproof)
  • Mounting: Rigid
  • Motor Diameter: 6-1/2"
  • Shaft Diameter: 5/8" Keyed
  • Shaft Length: 1-7/8"
  • Rotation: CW Shaft End
  • Number of Speeds: 1
  • Service Factor (SF): 1.25
  • Bearings: Ball
  • Thermal Protection: None
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • Capacitor: Included
  • C324ES is listed in Century's cross reference as a substitute for the following: Century K56AB91A01
  • Ship Weight: 44 lbs.
