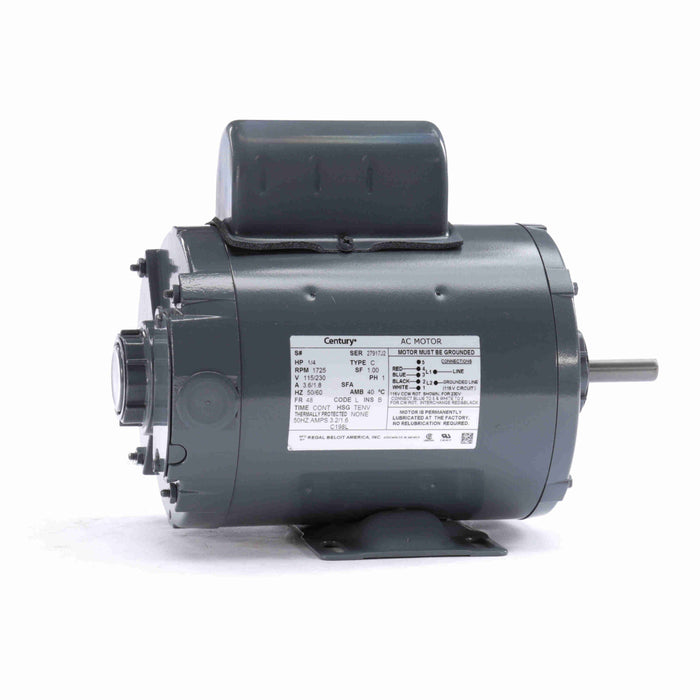

Century C198L 5.6" Diameter General Purpose Single Phase Motor - C198L
Sold out
$383.35
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: C198L
Manufacturer: Century
Returns & Warranties
- Product Type: Capacitor Start
- HP: 1/4
- RPM: 1725
- Volts: 115/230
- Amps: 3.6/1.8
- Hz: 50/60
- Phase: 1
- Frame: 48
- Enclosure Type: TENV (Totally Enclosed Non Ventilated)
- Mounting: Rigid
- Motor Diameter: 5-5/8"
- Shaft Diameter: 1/2"
- Shaft Length: 1-1/2"
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.00
- Bearings: Ball
- Thermal Protection: None
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Capacitor: 356MFD @ 110VAC (Included)
- C198L is listed in Century's cross reference as a substitute for the following: A.O. Smith C198, Baldor L3403, Baldor L34035, Century C195, GE 5KC32GN9, GE C242, Dayton 2K577, Leeson 100361, Leeson 102014, U.S.E.M. B753, Universal Electric HP2K007
- Ship Weight: 20 lbs.
