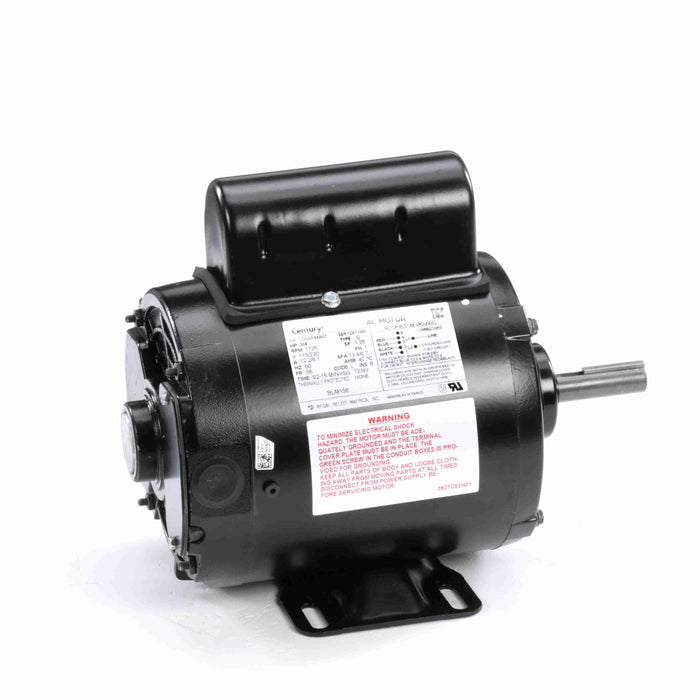

Century BLM156 General Purpose Single Phase Motor - BLM156
Sold out
$287.77
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: BLM156
Manufacturer: Century
Returns & Warranties
- Product Type: Capacitor Start
- HP: 3/4
- RPM: 1725
- Volts: 115/230
- Amps: 12.2/6.1
- Hz: 60
- Phase: 1
- Frame: 56
- Enclosure Type: TENV (Totally Enclosed Non Ventilated)
- Mounting: Rigid
- Motor Diameter: 6-1/2"
- Shaft Diameter: 5/8" Keyed
- Shaft Length: 1-7/8"
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.25
- Bearings: Ball
- Thermal Protection: None
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: 15 Minutes
- Capacitor: 540-648MFD @ 165VAC (Included)
- BLM156 is listed in Century's cross reference as a possible substitute for the following: A.O. Smith BLM056, A.O. Smith C56AA99A01, A.O. Smith C56AB44A01
- Ship Weight: 30 lbs.
