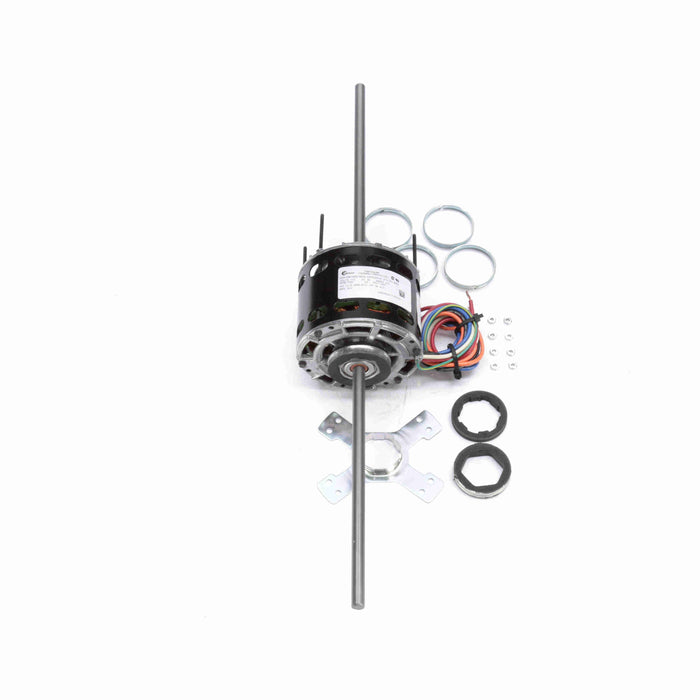

Century 9676 5" Diameter HVAC Fan Coil and Room Air Conditioning Motor - 9676

$193.88

Catalog#: 9676
Manufacturer: Century

  • Product Type: Shaded Pole
  • HP: 1/8
  • RPM: 1050
  • Volts: 115
  • Amps: 4.4
  • Hz: 60
  • Phase: 1
  • Frame: 42Y
  • Enclosure Type: OAO (Open Air Over)
  • Mounting: Cradle/Stud
  • Motor Diameter: 5"
  • Shaft Diameter: 1/2"
  • Shaft Length: 10-1/2" x 10-1/2"
  • Rotation: Double Shafted
  • Number of Speeds: 1
  • Service Factor (SF): 1.00
  • Bearings: Sleeve
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: B
  • Duty Cycle: Continuous
  • 9676 is listed in Century's cross reference as a substitute for the following: A.O. Smith DA3G7207, Dayton 4M369, Dayton 4UU50
  • 3-1/2" Shaft Height
  • Mounting Accessories Packaged With Motor
  • Ship Weight: 11 lbs.
