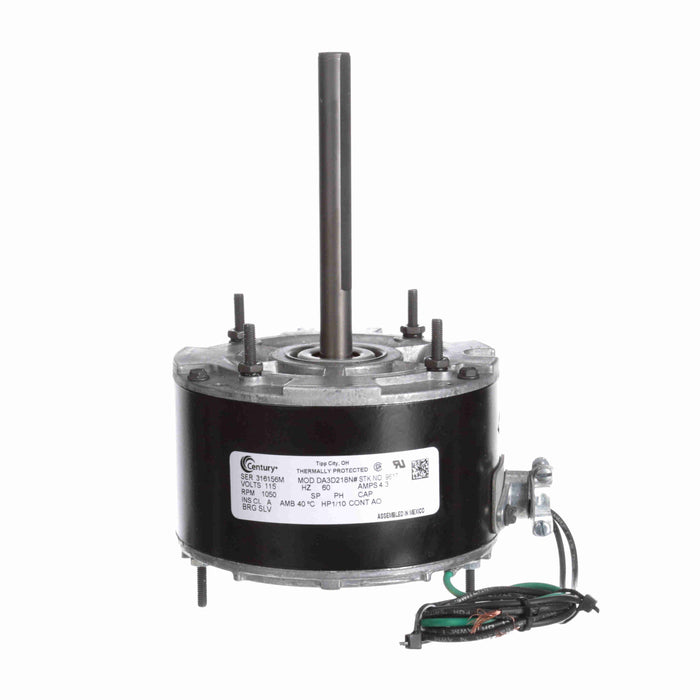

Century 9617 5" Diameter HVAC Direct Drive Fan Motor - 9617
Sold out
$237.31
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: 9617
Manufacturer: Century
Returns & Warranties
- Product Type: Shaded Pole
- HP: 1/10
- RPM: 1050
- Volts: 115
- Amps: 4.3
- Hz: 60
- Phase: 1
- Frame: 42
- Enclosure Type: OAO (Open Air Over)
- Mounting: Band/Stud
- Motor Diameter: 5"
- Shaft Diameter: 1/2"
- Shaft Length: 4-1/2"
- Rotation: CW Shaft End
- Number of Speeds: 1
- Service Factor (SF): 1.00
- Bearings: Sleeve
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 40° C
- Insulation Class: A
- Duty Cycle: Continuous
- 9617 is listed in Century's cross reference as a possible substitute for the following: A.O. Smith DA3D218, Fasco D144, Universal Electric DA3D218, Universal Electric DA3D7218
- 4 Studs With Spacer And Nut On A 3.87" Diameter Bolt Circle
- Ship Weight: 6 lbs.
