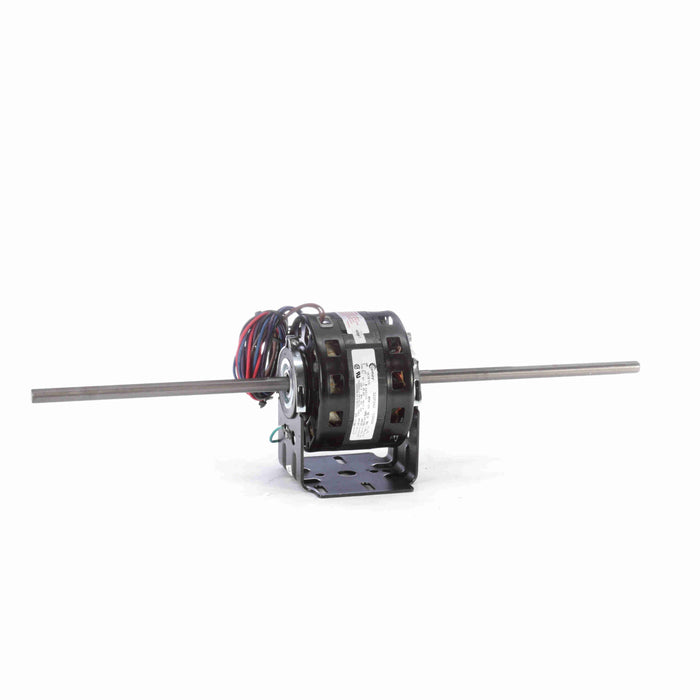

Century 7DB6504 5" Diameter HVAC Fan Coil and Room Air Conditioning Motor - 7DB6504

$294.42

Catalog#: 7DB6504
Manufacturer: Century

  • Product Type: PSC (Permanent Split Capacitor)
  • HP: 1/10, 1/8, 1/6
  • RPM: 1075
  • Volts: 277
  • Amps: 0.9/0.7/0.5
  • Hz: 60
  • Phase: 1
  • Frame: 42Y
  • Enclosure Type: OAO (Open Air Over)
  • Mounting: Cradle
  • Motor Diameter: 5"
  • Shaft Diameter: 1/2"
  • Shaft Length: 9-5/16" x 9-5/16"
  • Rotation: Double Shafted
  • Number of Speeds: 3
  • Service Factor (SF): 1.00
  • Bearings: Sleeve
  • Thermal Protection: Automatic
  • Maximum Ambient Temperature: 40° C
  • Insulation Class: A
  • Duty Cycle: Continuous
  • Capacitor: 5MFD @ 370VAC Required
  • 7DB6504 is listed in Century's cross reference as a substitute for the following: A.O. Smith 322P242, Johnstone Supply S88-276
  • Includes Base
  • 3-1/2" Shaft Height
  • 36" Leads
  • Ship Weight: 12 lbs.
