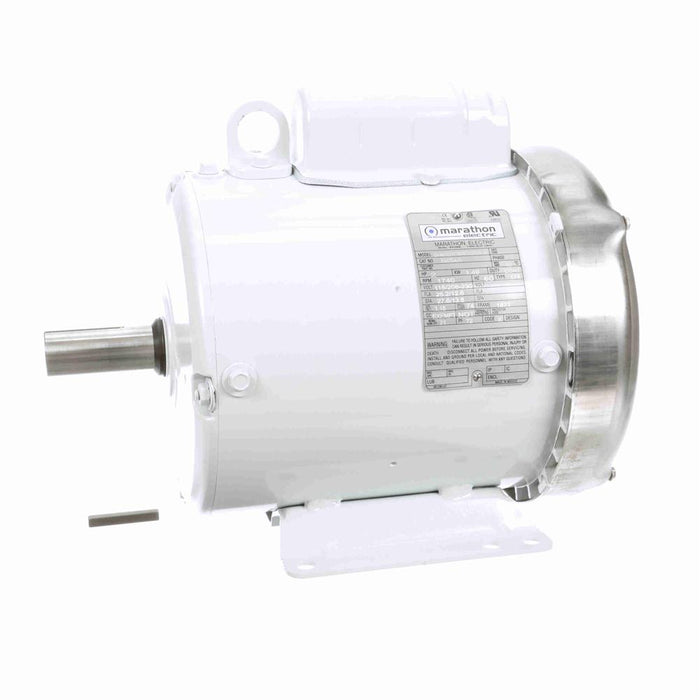

Marathon N684A Washdown Duty Motor - N684A
Sold out
$1,395.33
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: N684A
Manufacturer: Marathon
Returns & Warranties
- Amps: 25.2/12.6
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.71
- Enclosure Material: Steel
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 182T
- HP: 2
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: 182TCWW7026
- Maximum Ambient Temperature: 40° C
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 13.46"
- Phase: 1
- Product Type: Capacitor Start
- Rotation: Reversible
- RPM: 1740
- Service Factor: 1.15
- Shaft Diameter: 1-1/8"
- Shaft Length: 2.75"
- Volts: 115
- Volts: 208
- Volts: 230
- Ship Weight: 65 lbs.
