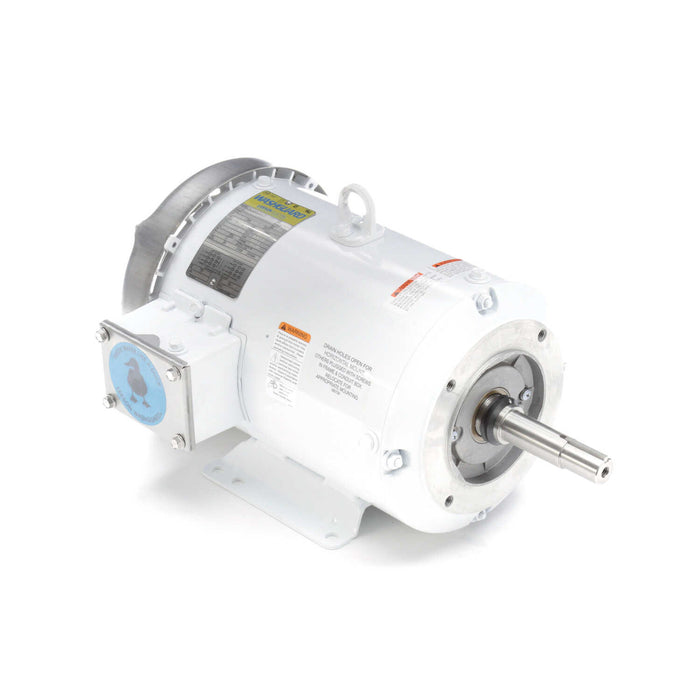

Leeson 132446.00 Three Phase White Duck™ Washdown Duty Pump Motor
Sold out
$1,573.95
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: 132446
Manufacturer: Leeson
Returns & Warranties
- Product Type: Three Phase
- HP: 7-1/2
- RPM: 3510
- Volts: 208-230/460
- Amps: 19.2-17.6/8.8
- Hz: 60
- Phase: 3
- Frame: 184JM
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Enclosure Material: Rolled Steel
- Mounting: Rigid Base
- Shaft Diameter: 0.875"
- Shaft Length: 4.21"
- Motor Shell Length: 10.50"
- Overall Length: 17.63"
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor: 1.15
- Bearings: Ball
- Efficiency: 90.1%
- Maximum Ambient Temperature: 40° C
- Insulation Class: F
- Duty Cycle: Continuous
- Ship Weight: 90 lbs.
