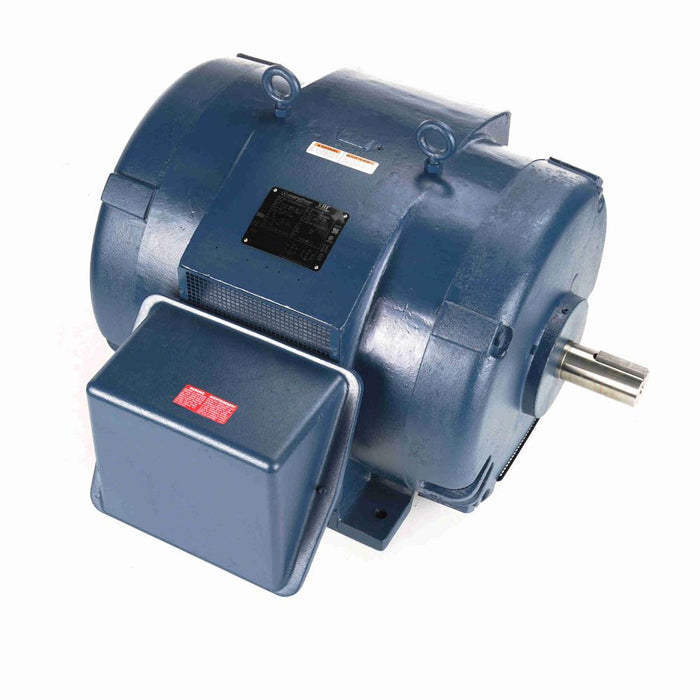

Marathon E792A Premium Efficient General Purpose Motor - E792A
Sold out
$9,099.60
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: E792A
Manufacturer: Marathon
Returns & Warranties
- Amps: 170
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.958
- Enclosure Material: Iron
- Enclosure Type: ODP (Open Dripproof)
- Frame: 444TS
- HP: 150
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: 444TSTDS16038
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 18.5"
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 34"
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 1785
- Service Factor: 1.15
- Shaft Diameter: 2-3/8"
- Shaft Length: 5"
- Volts: 460
- Ship Weight: 1275 lbs.
