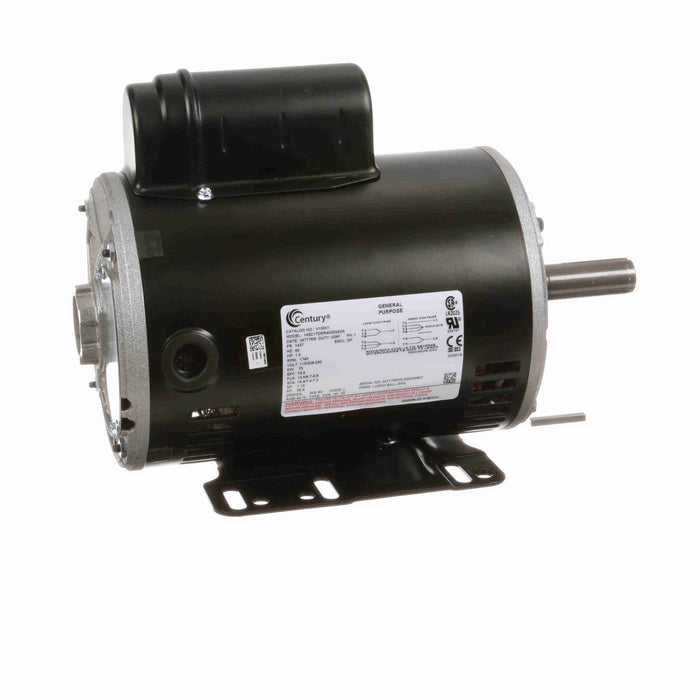

Century V100V1 General Purpose Single Phase Motor - V100V1
Sold out
$371.83
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: V100V1
Manufacturer: Century
Returns & Warranties
- Product Type: Capacitor Start
- HP: 1
- RPM: 1745
- Volts: 115/208-230
- Amps: 7.2/7.5/15
- Hz: 60
- Phase: 1
- Frame: 143T
- Enclosure Type: ODP (Open Dripproof)
- Mounting: Rigid
- Shaft Diameter: 7/8" Keyed
- Shaft Length: 2-1/4"
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.15
- Bearings: Ball
- Thermal Protection: None
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Capacitor: Included
- V100V1 is listed in Century's cross reference as a possible substitute for the following: Marathon V145TCDR5326, A.O. Smith 313P100, A.O. Smith 313P150, A.O. Smith 313P186, A.O. Smith 331745, A.O. Smith OB1104T, Baldor L1318T, Century 331745, Century V101, GE 5KC47RG6000, GE C188, Dayton 5K642, Dayton 5K995, Dayton 6K271, Dayton 6K642, Dayton 6K825, Johnstone Supply S91-213, Leeson 120004, Leeson 120044, Marathon I110, Marathon L110, Marathon V143TCDR5326, U.S.E.M. F074
- High Starting Torque
- Ship Weight: 35 lbs.
