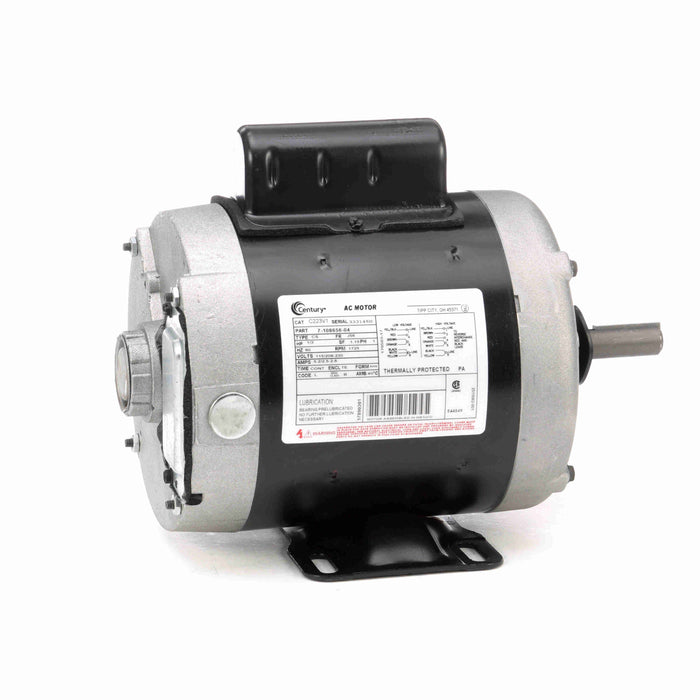

Century C223V1 General Purpose Single Phase Motor - C223V1
$97.72
Catalog#: C223V1
Manufacturer: Century
- Product Type: Capacitor Start
- HP: 1/3
- RPM: 1725
- Volts: 115/208-230
- Amps: 5.2/2.5/2.6
- Hz: 60
- Phase: 1
- Frame: 56
- Enclosure Type: TENV (Totally Enclosed Non Ventilated)
- Mounting: Rigid
- Motor Diameter: 6-1/2"
- Shaft Diameter: 5/8" Keyed
- Shaft Length: 1-7/8"
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.15
- Bearings: Ball
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Capacitor: Included
- C223V1 is listed in Century's cross reference as a substitute for the following: A.O. Smith 108656, A.O. Smith 312P798, A.O. Smith 327P~86, A.O. Smith 327P812, A.O. Smith C56H4TE102, A.O. Smith C56H4TE105, A.O. Smith EB1034A, Century 108656, Century C223, Century C228, Emerson 4005, GE 5KC35MN43X, GE C255, Dayton 3K225, Dayton 4K015, Dayton 5K121, Dayton 5K806, Dayton 6K306, Leeson 110015, Leeson 114613, Marathon G331, Marathon Q56C17F2048, Marathon Q56C17F5301
- Ship Weight: 26 lbs.
