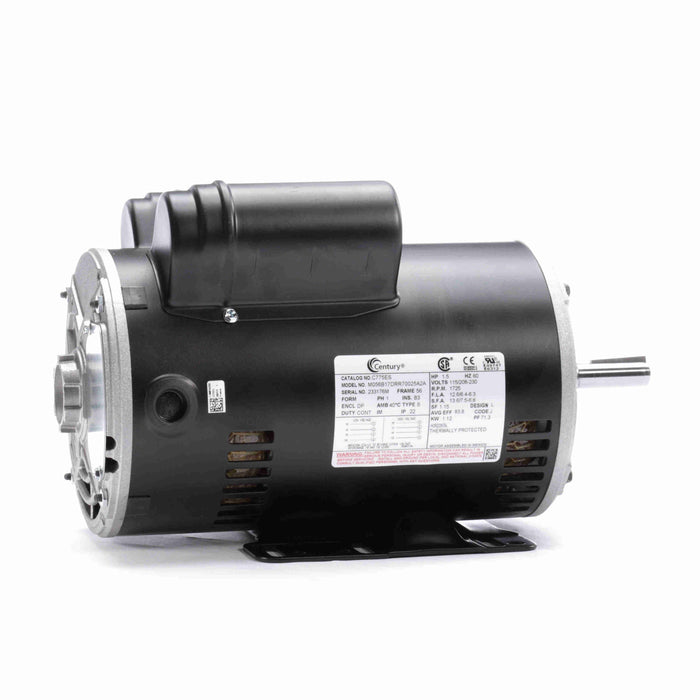

Century C775ES General Purpose Single Phase Motor - C775ES
Sold out
$168.09
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: C775ES
Manufacturer: Century
Returns & Warranties
- Product Type: Capacitor Start, Capacitor Run
- HP: 1-1/2
- RPM: 1725
- Volts: 115/208-230
- Amps: 13.4/7.2/6.7
- Hz: 60
- Phase: 1
- Frame: 56
- Enclosure Type: ODP (Open Dripproof)
- Mounting: Rigid
- Motor Diameter: 6-1/2"
- Shaft Diameter: 5/8" Keyed
- Shaft Length: 1-7/8"
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.15
- Bearings: Ball
- Thermal Protection: Manual
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Capacitor: Included
- C775ES is listed in Century's cross reference as a possible substitute for the following: A.O. Smith 164941, Baldor PL1319M, Carrier/BDP 246-102, Century 164941, Emerson 3760, Dayton 6K504, Leeson 110006, Marathon G951, Marathon P56C17D5308, U.S.E.M. B664, Baldor L1319M
- High Start Torque
- Two Step Varnish Treatment
- Energy Efficient
- Ship Weight: 35 lbs.
