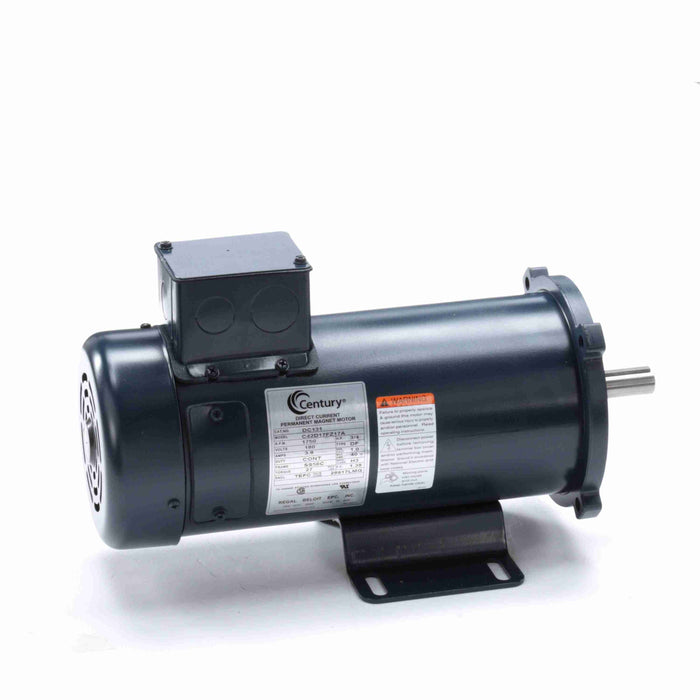

Century DC131 General Purpose DC Motor - DC131
Sold out
$692.39
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: DC131
Manufacturer: Century
Returns & Warranties
- Product Type: DC
- HP: 3/4
- RPM: 1750
- Volts: 180 VDC
- Amps: 3.8
- Phase: DC
- Frame: 56C
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Mounting: C-Face/Rigid
- Motor Diameter: 6-1/2"
- Shaft Diameter: 5/8" Keyed
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.00
- Bearings: Ball
- Maximum Ambient Temperature: 40° C
- Insulation Class: H
- Duty Cycle: Continuous
- DC131 is listed in Century's cross reference as a substitute for the following: A.O. Smith 222110, Baldor CDP3436, Boston Gear 466063725430A, Boston Gear 466063725431A, Boston Gear 466063725432A, Boston Gear 466063725439A, Century 222110, Dayton 2M508, Dayton 4Z525, Dayton 4Z525A, Leeson 108019, Leeson 98069
- Ship Weight: 32 lbs.
