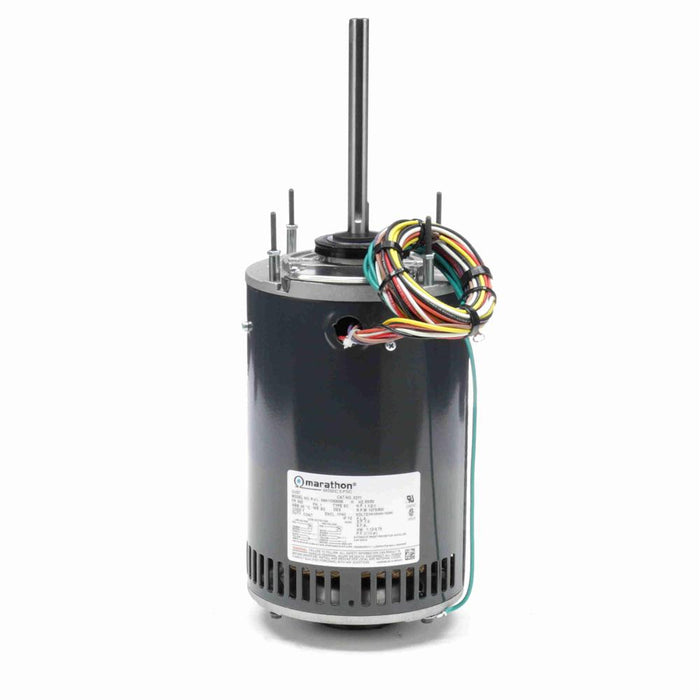

Marathon X271 6-1/2" Diameter Condenser Fan/Heat Pump Motor - X271
Sold out
$542.36
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: X271
Manufacturer: Marathon
Returns & Warranties
- Amps: 7.8-7.7/3.9
- Bearings: Ball
- Capacitor: 30MFD/370VAC Required
- Duty Cycle: Continuous
- Efficiency: 0.742
- Enclosure Material: Steel
- Enclosure Type: OAO (Open Air Over)
- Frame: 56Z
- HP: 1-1/2
- Hz: 60
- Insulation Class: B
- Manufacturer Model #: 056A11O5305
- Maximum Ambient Temperature: 60° C
- Motor Diameter: 6-1/2"
- Motor Shell Length: 9.06"
- Mounting Orientation: Horizontal
- Mounting: Base/Stud
- Number of Speeds: 1
- Overall Length: 17.53"
- Phase: 1
- Product Type: PSC (Permanent Split Capacitor)
- Rotation: Reversible
- RPM: 1075
- Service Factor: 1
- Shaft Diameter: 5/8"
- Shaft Length: 6.09"
- Thermal Protection: Automatic
- Volts: 208
- Volts: 230
- Volts: 460
- Ship Weight: 43 lbs.
