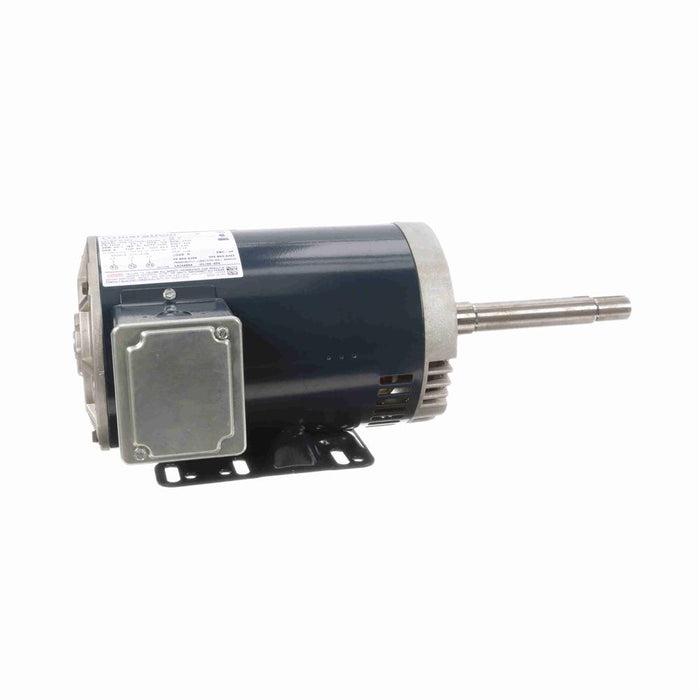

Marathon GT2509 Premium Efficient Close Coupled Pump Motor - GT2509
Sold out
$518.44
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: GT2509
Manufacturer: Marathon
Returns & Warranties
- Amps: 3
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.875
- Enclosure Material: Steel
- Enclosure Type: ODP (Open Dripproof)
- Frame: 145JP
- HP: 3
- Hz: 60
- Insulation Class: F
- Manufacturer Model #: 145TTDR16303
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 9.06"
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 18.18"
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 3510
- Service Factor: 1.15
- Shaft Diameter: 7/8"
- Shaft Length: 7.31"
- Volts: 575
- Ship Weight: 47 lbs.
