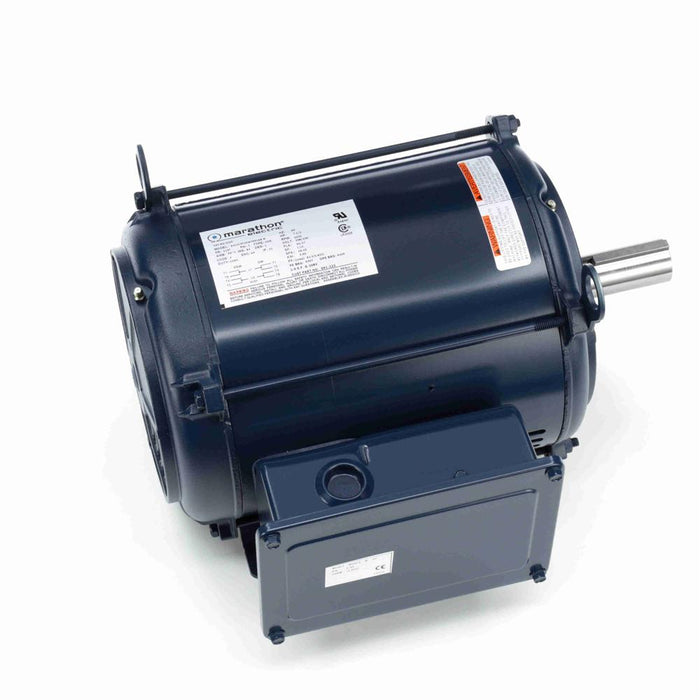

Marathon I105 Air Compressor Motor - I105
Sold out
$1,067.48
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: I105
Manufacturer: Marathon
Returns & Warranties
- Amps: 40-37
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.785
- Enclosure Material: Steel
- Enclosure Type: ODP (Open Dripproof)
- Frame: 213T
- HP: 7-1/2
- Hz: 60
- Insulation Class: B
- Manufacturer Model #: 213TCDW7001
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 9.65"
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 16.55"
- Phase: 1
- Product Type: Capacitor Start
- Rotation: Reversible
- RPM: 3470
- Service Factor: 1.15
- Shaft Diameter: 1-3/8"
- Shaft Length: 3.47"
- Volts: 208
- Volts: 230
- Ship Weight: 105 lbs.
