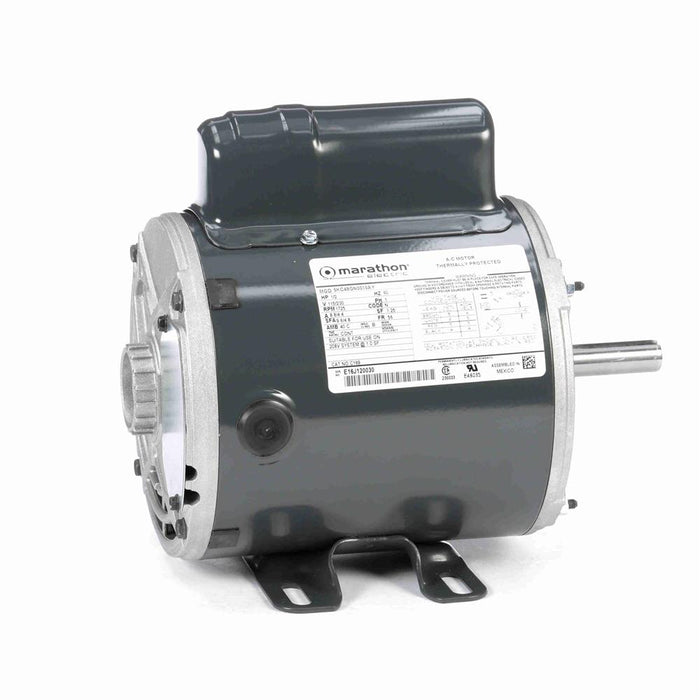

Marathon C169 6-1/2" Diameter Air Compressor Motor - C169
Sold out
$98.34
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: C169
Manufacturer: Marathon
Returns & Warranties
- Amps: 8.8/4.4
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.609
- Enclosure Material: Steel
- Enclosure Type: ODP (Open Dripproof)
- Frame: 56
- HP: 1/2
- Hz: 60
- Insulation Class: B
- Manufacturer Model #: 5KC49GN0010Y
- Maximum Ambient Temperature: 40° C
- Motor Diameter: 6-1/2"
- Motor Shell Length: 6.15"
- Mounting Orientation: Any
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 10.38"
- Phase: 1
- Product Type: Capacitor Start
- Rotation: Reversible
- RPM: 1725
- Service Factor: 1.25
- Shaft Diameter: 5/8"
- Shaft Length: 1.88"
- Thermal Protection: Manual
- Volts: 115
- Volts: 230
- Ship Weight: 21 lbs.
