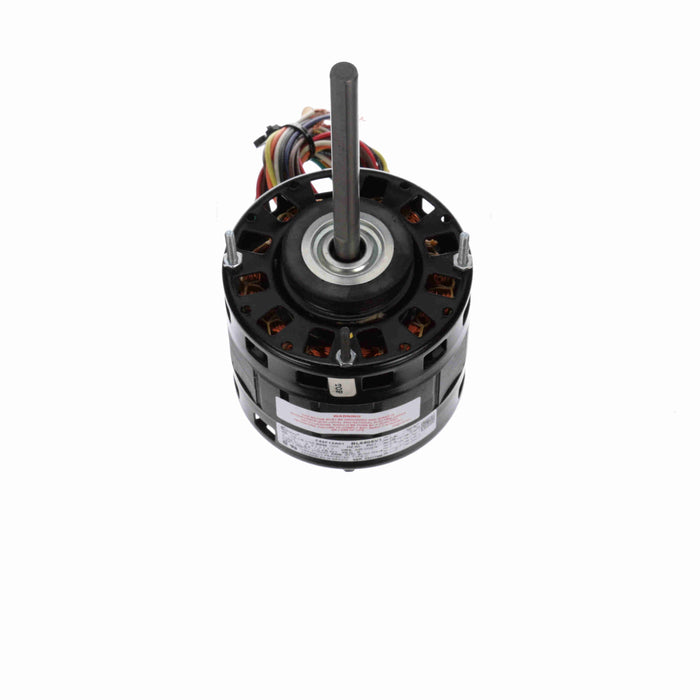

Century B6507V1 5" Diameter HVAC Direct Drive Fan Motor - B6507V1
Sold out
$194.18
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: B6507V1
Manufacturer: Century
Returns & Warranties
- Product Type: PSC (Permanent Split Capacitor)
- HP: 1/10, 1/6, 1/5
- RPM: 1075
- Volts: 230
- Amps: 1.3/0.9/0.7
- Hz: 60
- Phase: 1
- Frame: 42Y
- Enclosure Type: OAO (Open Air Over)
- Mounting: Band/Ring/Stud
- Motor Diameter: 5"
- Shaft Diameter: 1/2"
- Shaft Length: 5.54"
- Rotation: Reversible
- Number of Speeds: 1
- Service Factor (SF): 1.00
- Bearings: Sleeve
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 40° C
- Insulation Class: B
- Duty Cycle: Continuous
- Capacitor: 7.5MFD @ 370VAC Required
- B6507V1 is listed in Century's cross reference as a possible substitute for the following: A.O. Smith 326P164, A.O. Smith F42F13A01, Dayton 4M404, Dayton 4MB20
- Includes Resilient Mounting Rings
- 4 Through Bolts On A 4.42" Diameter Bolt Circle
- Ship Weight: 9 lbs.
