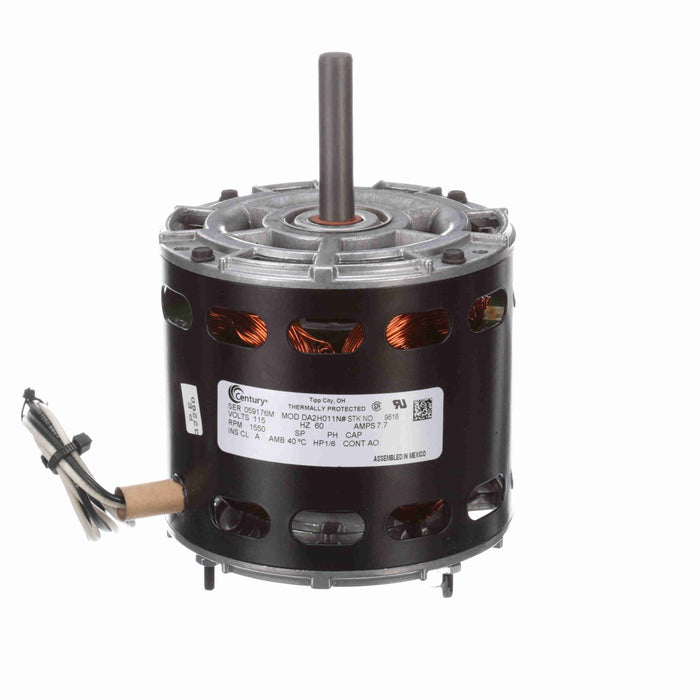

Century 9616 5" Diameter HVAC Direct Drive Fan Motor - 9616
Sold out
$234.46
Out of stock in our warehouses. Please call us for factory stock.
Catalog#: 9616
Manufacturer: Century
Returns & Warranties
- Product Type: Shaded Pole
- HP: 1/6
- RPM: 1550
- Volts: 115
- Amps: 7.7
- Hz: 60
- Phase: 1
- Frame: 42Y
- Enclosure Type: OAO (Open Air Over)
- Mounting: Band/Stud
- Motor Diameter: 5"
- Shaft Diameter: 1/2"
- Shaft Length: 2.3"
- Rotation: CW Shaft End
- Number of Speeds: 1
- Service Factor (SF): 1.00
- Bearings: Sleeve
- Thermal Protection: Automatic
- Maximum Ambient Temperature: 40° C
- Insulation Class: A
- Duty Cycle: Continuous
- 9616 is listed in Century's cross reference as a possible substitute for the following: Emerson F48HXCHF1394, Johnstone Supply S89-762, Universal Electric DA2H7011
- Ship Weight: 9 lbs.
