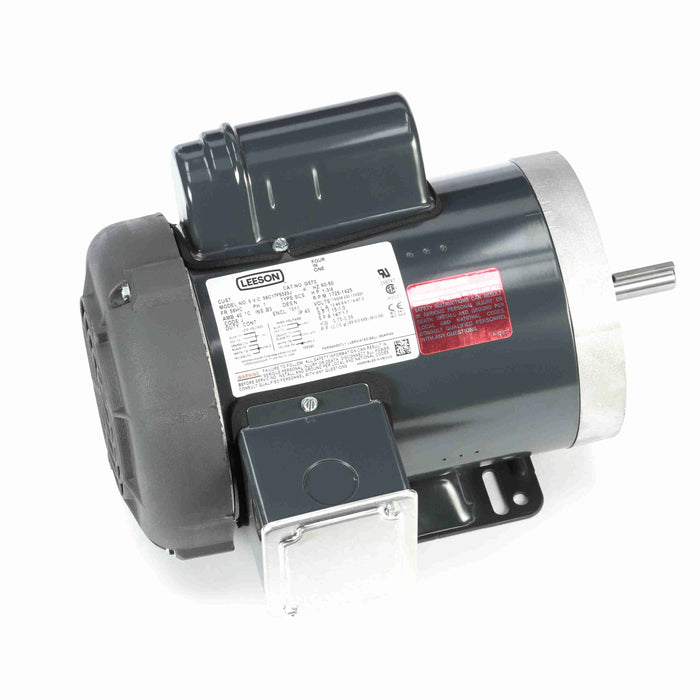

Marathon G573 General Purpose Motor - G573
$361.50
Catalog#: G573
Manufacturer: Marathon
Returns & Warranties
- Amps: 13.4/6.8-6.7
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.72
- Enclosure Material: Steel
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 56HC
- HP: 1
- Hz: 60
- Insulation Class: B
- Manufacturer Model #: 056C17F5323
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 7.56"
- Mounting Orientation: Horizontal
- Mounting: Face/Base
- Number of Speeds: 1
- Overall Length: 12.81"
- Phase: 1
- Product Type: Capacitor Start
- Rotation: Reversible
- RPM: 1725
- Service Factor: 1.15
- Shaft Diameter: 5/8"
- Shaft Length: 2.06"
- Volts: 115
- Volts: 208
- Volts: 230
- Ship Weight: 31 lbs.
